SCX LED Full color P2 LED display video wall panel for stage concert advertising screen
Production Features
Application :
Dispatching Center, Control Command Center, Monitoring Center, Conference Video Center, Information Center,Demonstration Center, Studio Center and so on
Thin and Light Cabinet:
Simple , ultra thin and light design ,easy to install and transport
fanless, zero noise, low power consumption, automatic heat dissipation
High Definition and Exquisite Image:
Small-pitch series obtain high contrast and high gray scale, It can realize the HD and exquisite image
Supporting point-to-point correction, to ensure the color and brightness consistency
Exquisite color, clear and natural image with excellent RGB gray scale processing
Seamless and precise Connection:
Seamless connection with high flatness and soft image
Accurate and flexible installation, Buckle design for the sides to realize quick installation and disassembling
Professional and standard aviation plug with high quality guarantee
Product Parameters
| Module Parameter |
| Pixel Pitch |
4mm |
| Pixel Configuration |
SMD2121 |
| Density |
62500pixels/sqm |
| Module Resolution |
64pixel(L) * 32pixel(H) |
| Module Dimension |
256mm(L) * 128mm(H) * 25mm(D) |
| Driving Mode |
Constant current, 1/2 duty |
| Module Mask |
Pure black mask---high contrast screen |
| LED Cabinet |
| Module Quantity in a Cabinet |
4(L) * 8(H) |
| Cabinet Dimension |
1024(L)* 1024(H)* 150(D)mm |
| Cabinet Resolution |
256(L) * 256(H) |
| Cabinet Material |
Steel |
| Cabinet Weight |
≈30KG |
| Electricity Parameter |
| Optical Ratings |
| Brightness |
≥1,200 cd/sqm |
| Viewing Angle |
120°(Horizontal); 120°(Vertical) |
| Best Viewing Distance |
≥6m |
| Gray Grade |
14 bits |
| Display Color |
4.4 trillion Colors |
| Brightness Adjustment |
100 grades by software or automatically by sensor |
| Operation Power |
AC100-240V 50-60Hz Switchable |
| Max. Power Consumption |
800W/sqm |
| Avg. Power Consumption |
200 W/sqm |
| Control System |
| Frame Frequency |
≥60Hz |
| Refresh Frequency |
≥1,920Hz |
| Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance |
100m(Ethernet cable);
20KM(optical fiber cable)
|
| Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature |
5000—9300 adjustable |
| Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
| Reliability |
| Working Temperature |
-20~+60 ºC |
| Storage Temperature |
-30~+70 ºC |
| Working Humidity |
10%~90% RH |
| Lifetime |
100,000 hours |
| MTBF |
5000 hours |
| Continuous Working Time |
≥72 hours |
| Protection Grade |
IP34 |
| Out-of-Control Pixel Rate |
≤0.01% |

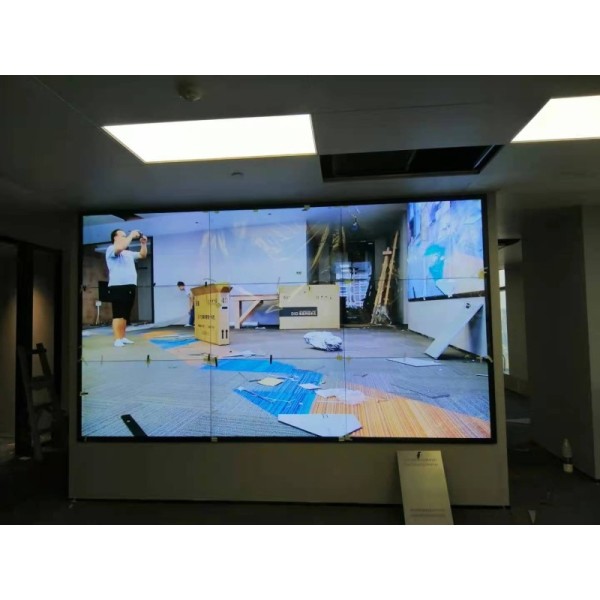

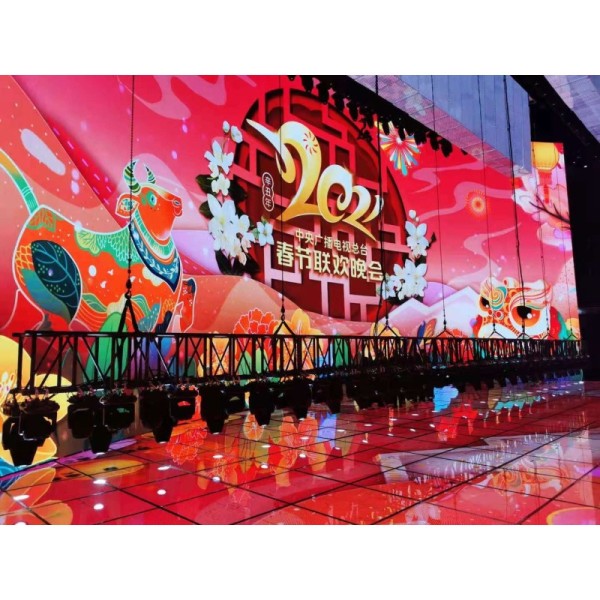

Our case
Installation Type
Our Service
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
FAQ
1.How can i place an order?
Please provide the details of your requirement for Led screen, like:
A.Indoor or outdoor Led screen you prefer?
B.What’s the width and height ?
C.Fixed or rental installation?
Once receive your requirement ,will send you quotation, for further discussion, had better to contact with us in the e-mail , WhatsApp or skype.
2.What kind of led display we provide?
We can provide many types of led screen: for example: indoor Led screen,outdoor Led screen, fixed led screen, rental led screen, led poster, irregular Led screen ect.
3.What about delivery time for the order?
7~25 days, depends on the detailed requirements.
4.How about the warranty?
We have 2 years warranty and lifelong maintenance
